Weak AM, FM, or HD Radio reception usually results from antenna location, building materials, electrical interference, signal overload, or feed-line loss. A small indoor antenna may not collect enough signal, especially in homes with metal roofing, foil-backed insulation, aluminum siding, or reinforced walls.
The Pixel Technologies AFHD-4 Long Range AM FM HD Radio Antenna provides a dedicated outdoor or attic antenna system for receivers with AM and FM inputs. It covers both broadcast bands over a single RG-6 coaxial cable and uses an included band separator to route the signals to the correct receiver connections.
Product Summary
- Model: AFHD-4
- Price: $149.95
- SKU: AFHD-4
- Manufacturer: Pixel Technologies
- Made in the USA
- Height: 48 inches
- Weight: 3 pounds
- Warranty: 1 year parts and labor
- Installation: Attic or outdoor
- Beam pattern: Omnidirectional
- Ground plane: Not required
- Cable: RG-6 coaxial cable
Why AM and FM Reception Becomes Weak
Indoor antenna placement
Indoor antennas are affected by walls, ceilings, wiring, appliances, and nearby electronics. The receiver may work normally, but the antenna may be located too far inside the structure to capture a clean signal.
Moving the antenna into an attic or outdoors can reduce the effect of building materials. Outdoor mounting generally provides the clearest path to local transmitters.
Electrical and electronic interference
AM reception is especially sensitive to electrical noise. Common sources include:
- LED lighting
- Power supplies
- Computers
- Solar equipment
- Motors
- Chargers
- HVAC equipment
- Network hardware
- Nearby utility wiring
The AFHD-4 places the receiving element away from many indoor interference sources. Use a temporary test location before permanent installation. Compare several positions with the same receiver and station.
Obstructions and terrain
Trees, hills, buildings, and roof structures can reduce signal strength. Metal roofing and foil-backed insulation can also shield attic installations. An attic installation may perform well in one home and poorly in another.
Mount the antenna as high and clear as practical. Use an outdoor location when attic materials block reception.
Signal overload
A nearby high-power transmitter can overload a receiver. The result may be distortion, static, or poor HD Radio lock even when the signal appears strong.
The AFHD-4 package includes two 10 dB attenuators and two 20 dB attenuators. Test the receiver without attenuation first. If strong local stations cause overload, test the 10 dB attenuators, followed by the 20 dB attenuators when required.
How the AFHD-4 Improves the Signal Path
The AFHD-4 combines an omnidirectional antenna with a dedicated AM/FM signal separation system.
The antenna covers:
- AM: 500 kHz to 1750 kHz
- FM: 88 MHz to 108 MHz
The included separator routes the FM signal through the 75-ohm coaxial path and converts the AM signal for receivers using 300-ohm AM terminals. Correct connection is required for proper operation.
The design also provides:
- 4.5 dB gain
- 300-inch AM capture length
- More than 50 dB FM rejection in the AM band
- More than 60 dB AM rejection in the FM band
- Less than 1 dB pass-band loss
- 300-ohm AM load impedance
- 75-ohm FM load impedance
This arrangement helps keep AM and FM signals separated before they reach the receiver.
Expected Reception Range
Pixel Technologies lists the following daytime reception figures:
| Signal type | Stated reception |
|---|---|
| FM Stereo | Up to 80 miles |
| FM HD | Up to 50 miles |
| AM Mono | Up to 90 miles |
| AM HD | Up to 50 miles |
These figures are estimates based on installation and operating conditions. Actual performance varies with:
- Antenna height above ground
- Transmitter power
- Transmitter beam pattern
- Terrain
- Local interference
- Cable length and quality
- Receiver quality
- Station frequency
- Attic or outdoor obstructions
The AFHD-4 cannot restore a station blocked by severe terrain or a transmitter outside practical range. It can provide a better receiving position and a cleaner signal path than many basic indoor antennas.
Attic or Outdoor Installation
The AFHD-4 supports both installation types.
Attic installation
Use an attic location when:
- The roof does not contain significant metal
- Foil-backed insulation is not present
- The antenna can be positioned away from wiring
- Outdoor mounting is restricted
- The attic provides sufficient height
Before securing the antenna, test the intended position. Rotate or relocate the antenna if AM noise or FM multipath interference remains.
Outdoor installation

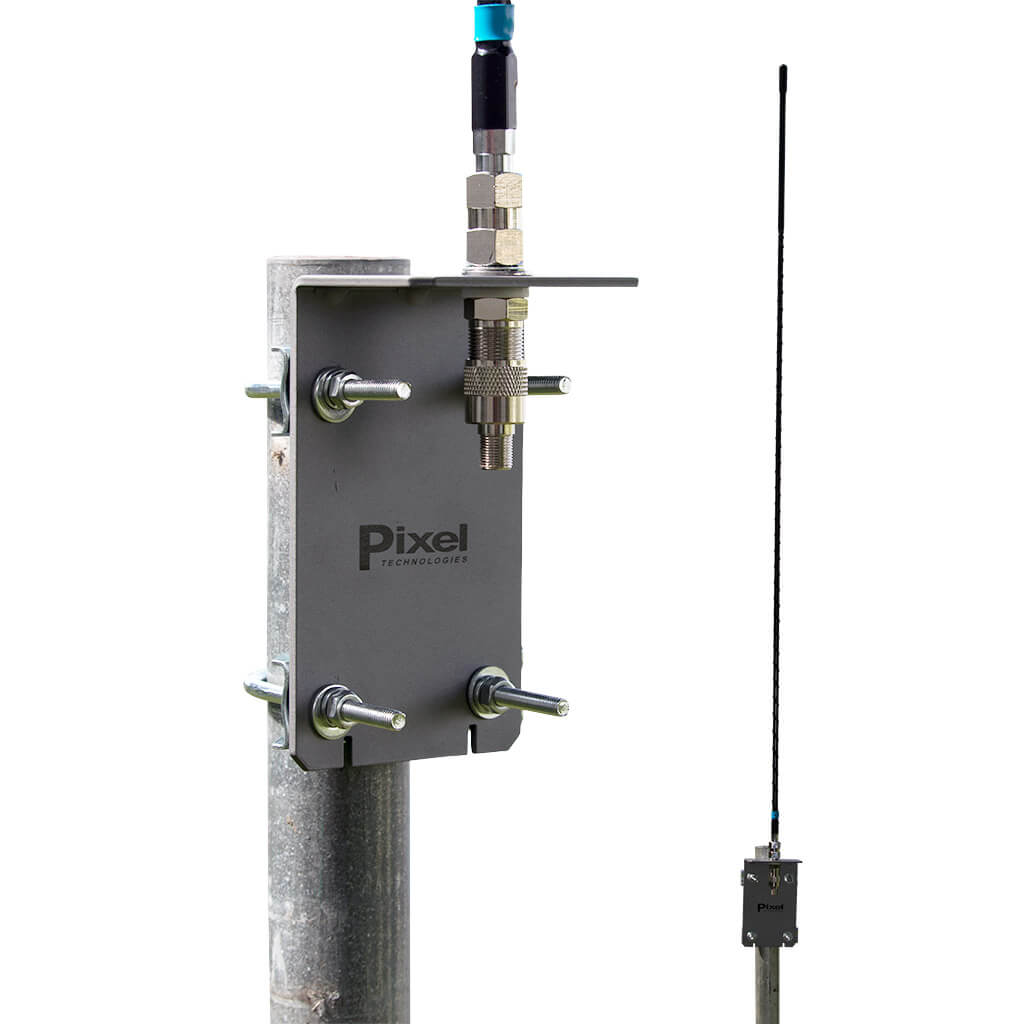

Use outdoor mounting when maximum antenna height is required. The package includes:
- L-mounting bracket
- Weather boot
- Surge protector
- U-bolts with washers and nuts
- Pole-mount saddle brackets
- Mounting screws with plastic inserts
Seal the outdoor F-connector with the included weather boot. Install the surge protector as part of the outdoor coaxial path and follow local grounding requirements.
Route RG-6 away from AC power wiring where practical. Avoid sharp bends and loose exterior cable runs. Verify each connector before connecting the receiver.
Review the AFHD-4 installation manual before mounting.
Package Contents
The AFHD-4 includes the main components required for a standard installation:
- AM/FM antenna
- L-mounting bracket
- Weather boot
- Surge protector
- Two 20 dB attenuators
- Two 10 dB attenuators
- Two 1-foot RG-6 cables
- AM/FM band separator
- Two U-bolts with washers and nuts
- Two pole-mount saddle brackets
- Four mounting screws with plastic inserts
- F-female to twin-lead adapter
A separate coaxial run may be required depending on the receiver location and installation distance.
Adding SiriusXM to the Same Mast
The AFHD-4 can be combined with the AFXSM-5 AM FM HD SiriusXM Radio Multi-signal Antenna Kit, priced at $269.95.
The AFXSM-5 includes:
- AFHD-4 AM/FM antenna
- PRO500 SiriusXM antenna
- Mounting hardware
- Signal separator components
- Combiner hardware
- RG-6 cable
- AM adapters
- Attenuators
This setup supports AM, FM, FM HD, and SiriusXM using one mast-mounted installation. It is suitable for homes, commercial audio systems, hospitality locations, and other installations with existing coaxial wiring.
Compatible Accessories
Use the following accessories when the installation requires signal splitting, amplification, separation, or protection:
- MBS-4 SiriusXM Multi-band Splitter: $14.95
- MB-2 Multi-Band 2-way Splitter: $14.95
- MBA-12 Ultra Wide Band Line Amplifier: $49.95
- AM FM Radio Signal Band Separator Kit: $24.95
- AM/FM Band Separator: $9.95
- Coaxial Surge Protector: $11.95
- 5V VDC Power Inserter PS-1: $49.95
- AM Twin Lead Adapter: $9.95
Select an amplifier only after checking the installation. Amplification does not correct poor antenna placement or local interference. Test the antenna position, cable, separator, and receiver first.
AFHD-4 FAQ
Is the AFHD-4 omnidirectional?
Yes. The AFHD-4 uses an omnidirectional design. No antenna rotation is required for normal station selection.
Does the AFHD-4 require a ground plane?
No. The AFHD-4 does not require a ground plane.
Can the AFHD-4 be installed in an attic?
Yes. The AFHD-4 supports attic installation. Avoid metal roofing, foil-backed insulation, wire mesh, and other materials that can block or reduce the signal.
Does the AFHD-4 support HD Radio?
Yes. It is designed for AM, FM, and HD Radio reception. HD Radio performance depends on station strength, distance, terrain, interference, and receiver capability.
What cable does the AFHD-4 use?
The antenna system uses RG-6 coaxial cable. The package includes two 1-foot RG-6 cables for the installation.
Can the AFHD-4 connect to an AM receiver with twin-lead terminals?
Yes. The package includes an F-female to twin-lead adapter. The AM/FM separator routes the AM signal to the appropriate receiver input.
Can the AFHD-4 and SiriusXM use one mast?
Yes. Combine the AFHD-4 with the AFXSM-5 kit for AM, FM, FM HD, and SiriusXM reception from one mast-mounted system.
What is the warranty?
The AFHD-4 includes a 1-year parts and labor warranty.
Next Step
Check the receiver inputs, select an attic or outdoor location, and test the signal before permanent mounting.
View the Pixel AFHD-4 Long Range AM FM HD Radio Antenna
Download the AFHD-4 Installation Manual
