Signal Distribution Design Services

Have a large installation with multiple SiriusXM® Receivers or AM / FM tuners? Let us help you! Our team will design the perfect system for your installation needs. Below are a some examples of signal distribution systems we have designed for our clients.

Custom Signal Distribution Designs

Over 20 years ago we pioneered a new industry creating the first satellite radio signal splitters for commercial XM Radio installations. Today those systems have evolved to included SiriusXM® signals and AM / FM radio signals as well. Over the years we have designed systems for hundreds of hospital operating rooms, retail stores, commercial buildings, car manufacture test facilities, sporting venues and more. No system is to large or to small for our team to tackle. Contact us to learn more about our custom signal distribution design services.

Start Your Project

Operating Room Example - Sanford Health

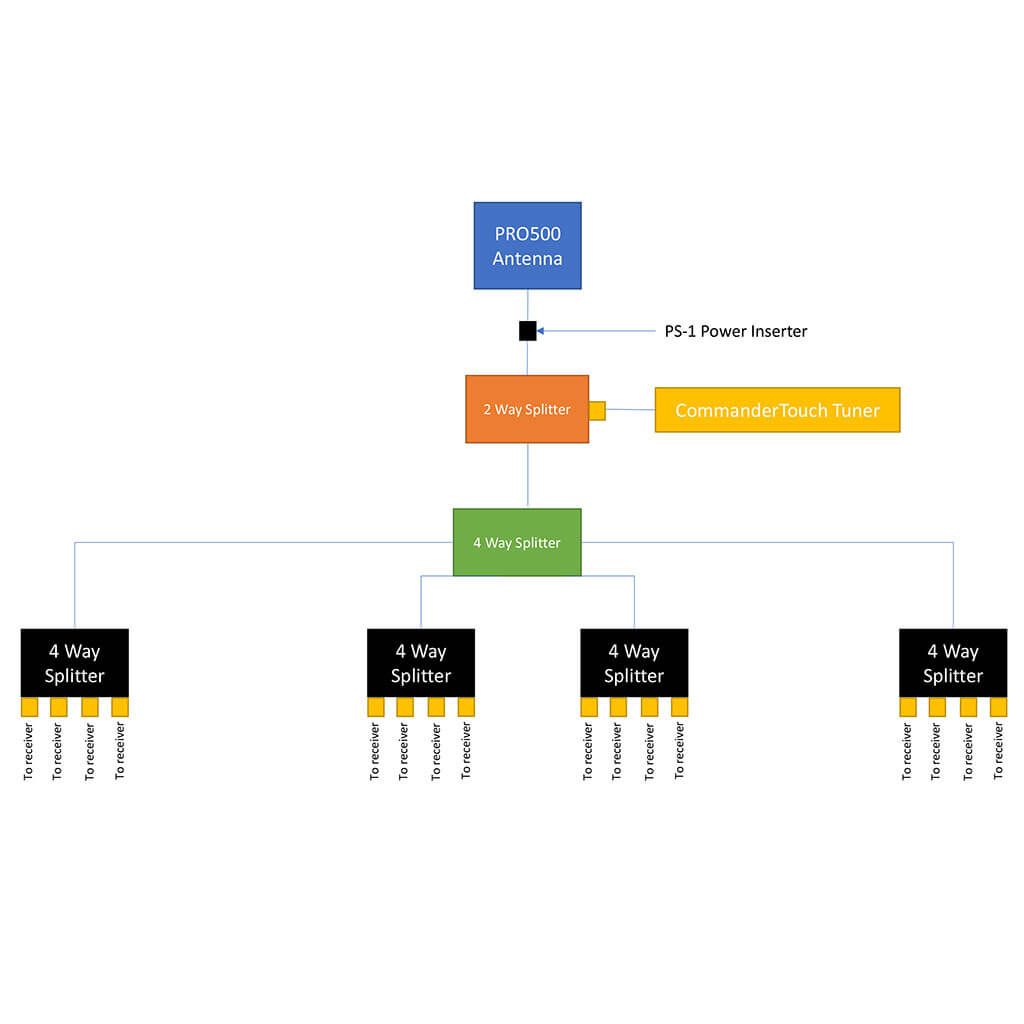

The health care provider wanted to install SiriusXM® into over 40 operating rooms utilizing only one PRO500 SiriusXM® satellite radio antenna. We built the installation diagram and BOM (build of materials) to assit the technician tasked with completing the install. Trust us when we say, "Doctors gotta have their SiriusXM® when in surgery".

Display Wall Example - West Marine

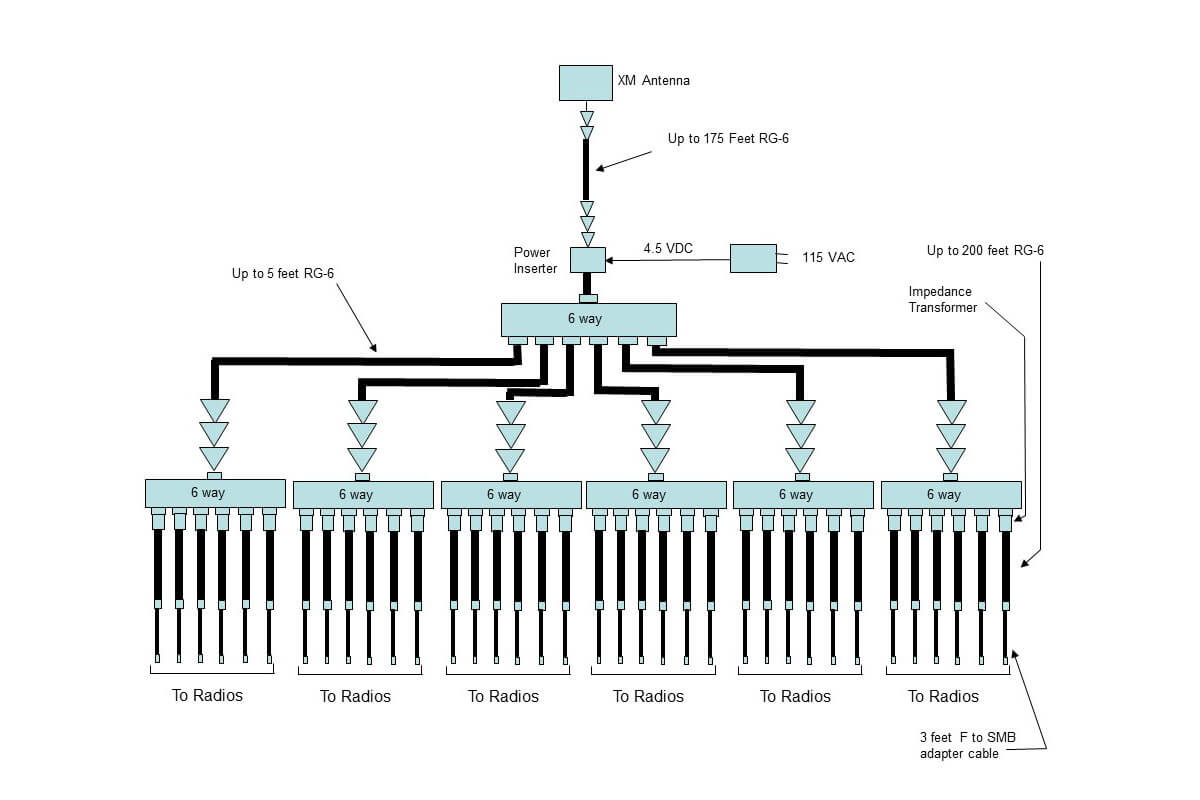

Ever been inside a West Marine and seen a display wall with stereos speakers? If so, then you have seen our SiriusXM® signal distribution systems at work. Behind the wall is a series of our signal splitter kits and combiners and on the roof is a PRO500 SiriusXM® antenna. Each system was carefully designed to meet the specific needs of the client and ensure maximum signal reception.

Design Tools with Lucid Chart

We offer full design services using Lucid Chart with complete diagrams and easy to follow instructions. Whether you are a seasoned install professional or someone looking to do your own installation let our staff design the right signal distribution system for your install using Lucid Chart design studio.

Click Here to download the free version of Lucid Chart

Start Your Project!

Some of our Clients
