OnyX EZR SiriusXM Radio Receiver with PRO500 Antenna and Install Kit

SKU: PXEZR-500

Price:
Sale price$239.95

Shipping calculated at checkout

Stock:
In stock

Description

Get the the new OnyX EZR portable SiriusXM™ satellite radio receiver, PRO500 Antenna and installation accessory kit. The PRO500 antenna included with this bundle works on RG-6 cable allowing for cables runs of varying lengths. Please note if you are running more than 200 feet of RG-6 Coax cable you will need an SBA-1 inline amplifier.

OnyX EZR Receiver Overview

  • Browse what’s playing on other channels while listening to the current one
  • One-Touch Jump™ to the previous channel to which you were listening
  • Listen in multiple vehicles, at home, in the office or outdoors - all with just one subscription
  • Hear SiriusXM through your existing vehicle stereo with easy, do-it-yourself installation
  • Store and easily access FM presets to optimize PowerConnect™ performance
  • Works on the XM network
  • View artist or show name, song or program title and content or channel information on an easy-to-read large high-resolution display
  • Store up to 10 of your favorite channels for one touch access
  • Create your own music channel that’s a blend of channels with TuneMix™
  • Easily lock and unlock channels with mature content

OnyX EZR Technical Specifications

  • System Power Requirements: 9-16 V DC, 500 mA (max)
  • Operating Temperature: -4°F to +140°F (-20°C to +60°C)
  • Audio Output: 1.0 Vrms (max)
  • Onyx EZR Radio Dimensions: 5.0 in (W) x 2.7 in (H) x 0.72 in (D) (128 mm (W) x 68 mm (H) x 18.5 mm (D))
  • Vehicle Antenna Type: SiriusXM Magnetic Mount
  • Antenna Connector: SMB female, right angle
  • Aux In Cable Connectors: 1/8 in (3.5 mm) stereo male to 1/8 in (3.5 mm) stereo male
  • Aux Cable Length: Approximately 4 ft (1.2 m)

 PRO500 Product Information

The PRO500 is the first commercial grade weather proof XM Satellite Radio antenna with built in low noise filter and high selectivity interference filter. With this antenna the XM Radio signal is captured from the satellites without interference from other signal sources. The PRO500 is the perfect antenna for commercial and residential installations that require no signal loss. Includes the parts for mounting the antenna on a pole or on the wall.

Antenna Features

  • Optimized for interference / multi-path rejection and high gain reception of satellite radio signals

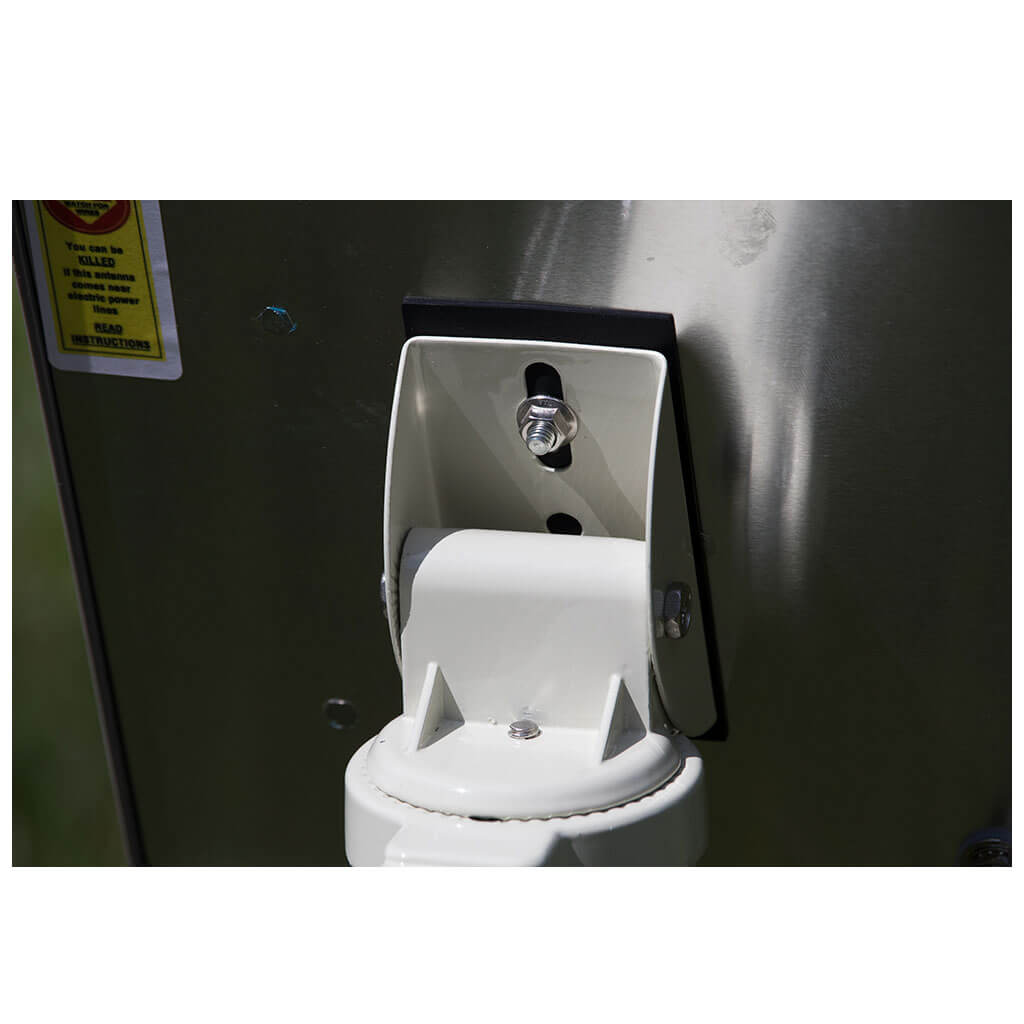

  • Mounts to any horizontal or vertical surface via the included wall mount bracket

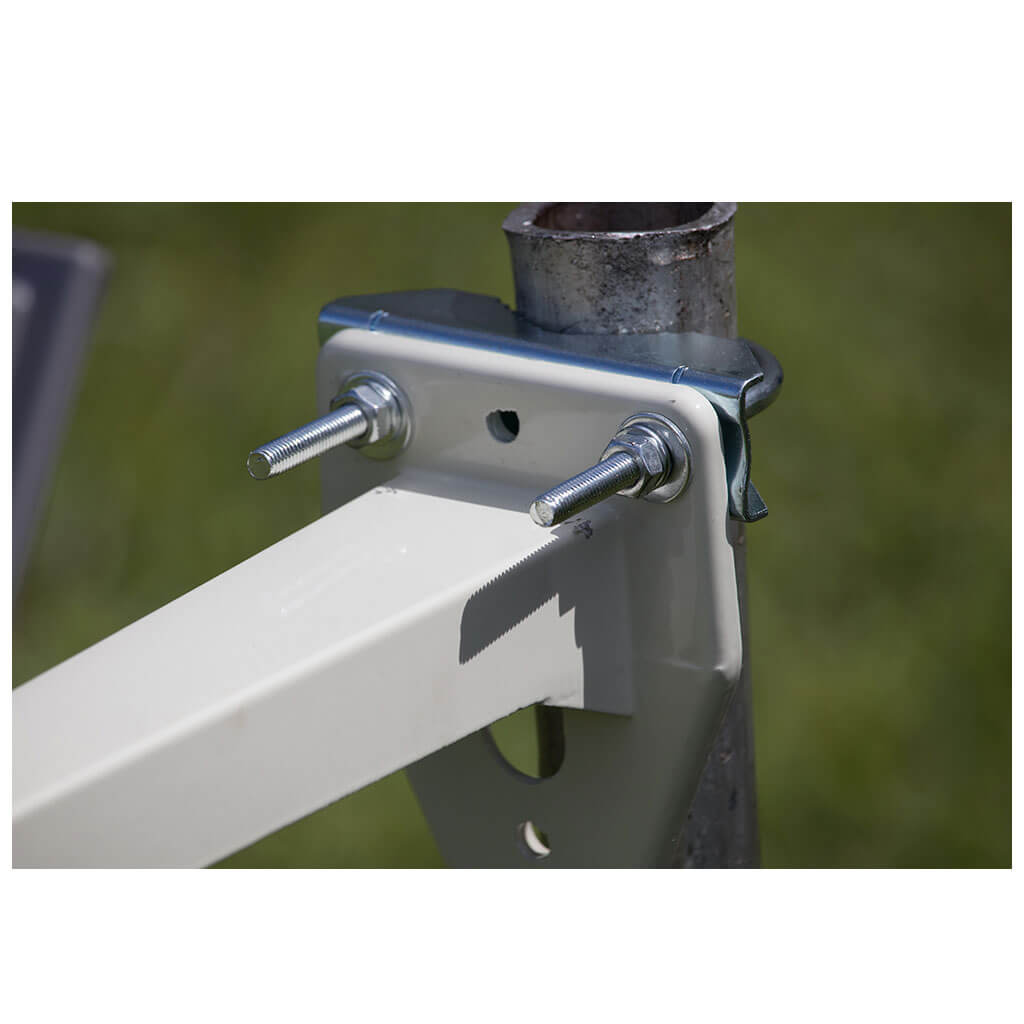

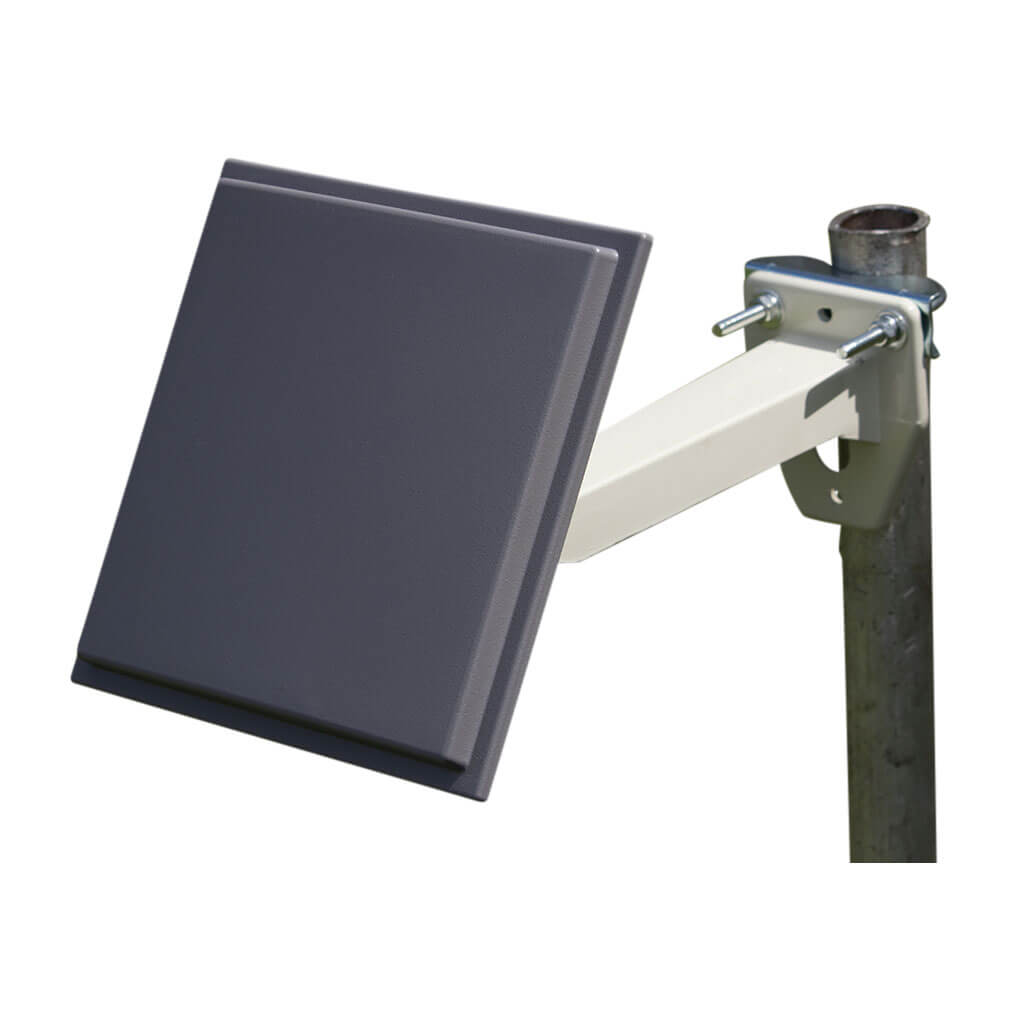

  • Includes pole fixture for mounting to any pole up to 2” diameter (pole not included)
  • High gain 12 dBi antenna (5 dB more gain than standard antennas)
  • Includes internal two-stage ultra-high selectivity low-noise amplifier/ filter providing over 60 dB out-of-band attenuation to other RF signals that can interfere with reception
  • Antenna amplifier / filter can drive up to 200 feet of RG-6 cable (not included). (Additional line amps available for longer runs: Model SBA-1)

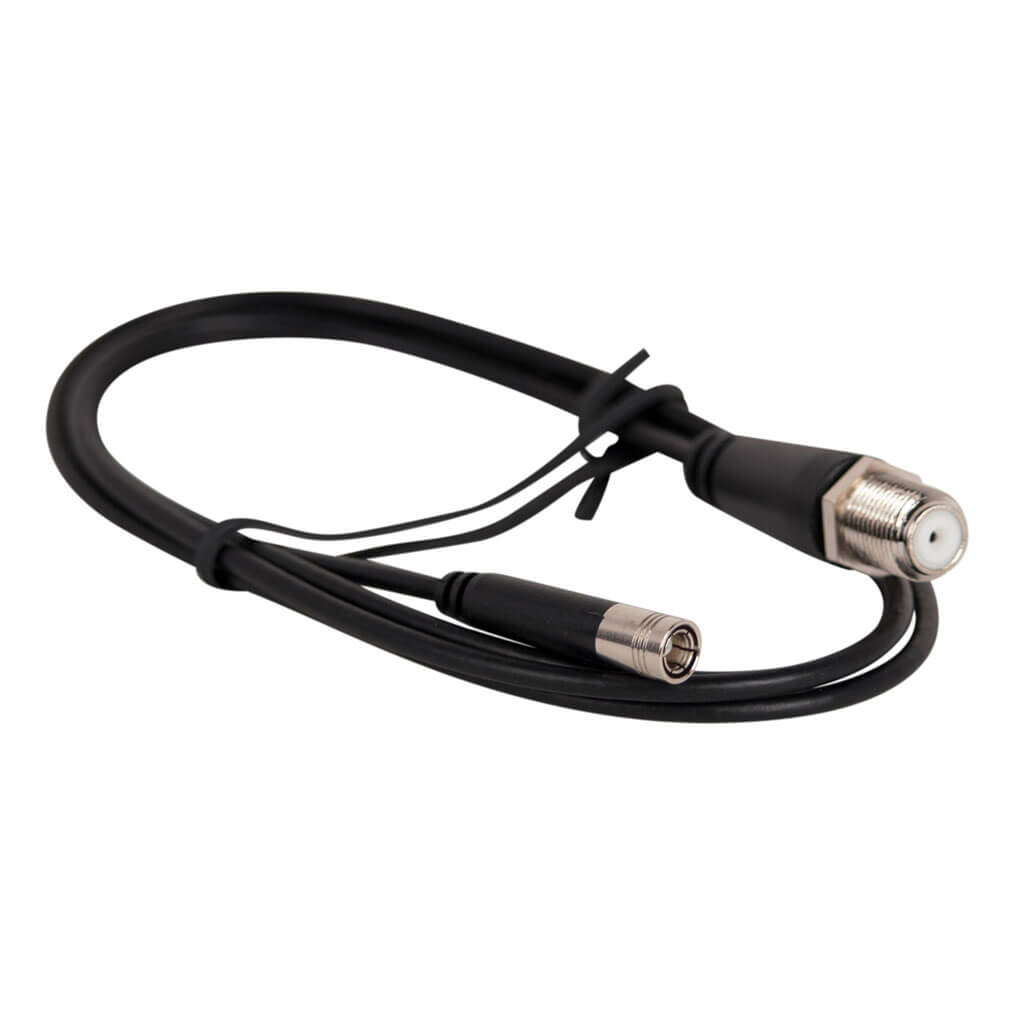

  • Includes 3 foot F-female to SMB-plug adapter cable to mate with radio.
  • Features front-end "Signal Filtration" to block out unwanted signals
  • The PRO500 is the first commercial grade weather proof XM Satellite Radio antenna with built in low noise filter and high selectivity interference filter
  • Strong line amplification and boosts 12db just from the antenna. Addiional line-amps can drive even more
  • Supports the use of multiple receivers so you can have 1 antenna for every receiver inside your location
  • Weather Resistant heavy-duty antenna able to withstand 100mp/h winds, snow, and sun unlike the standard XM antennas
  • Consistant Signal regulated with dedicated circutry so you have a solid and consistant signal to your XM receivers at all times (when aimed correctly)
  • Compatible with both XM and SIRIUS signals.
  • 1 Year warranty through manufacturer

Package Includes

  • (1) 12 dBi amplified antenna
  • (1) Weather boot
  • (1) Wall mount bracket
  • (1) 3’ F-female to SMB-plug adapter cable
  • (1) Pole Mount bracket
  • (1) Set of mounting screws / hardware

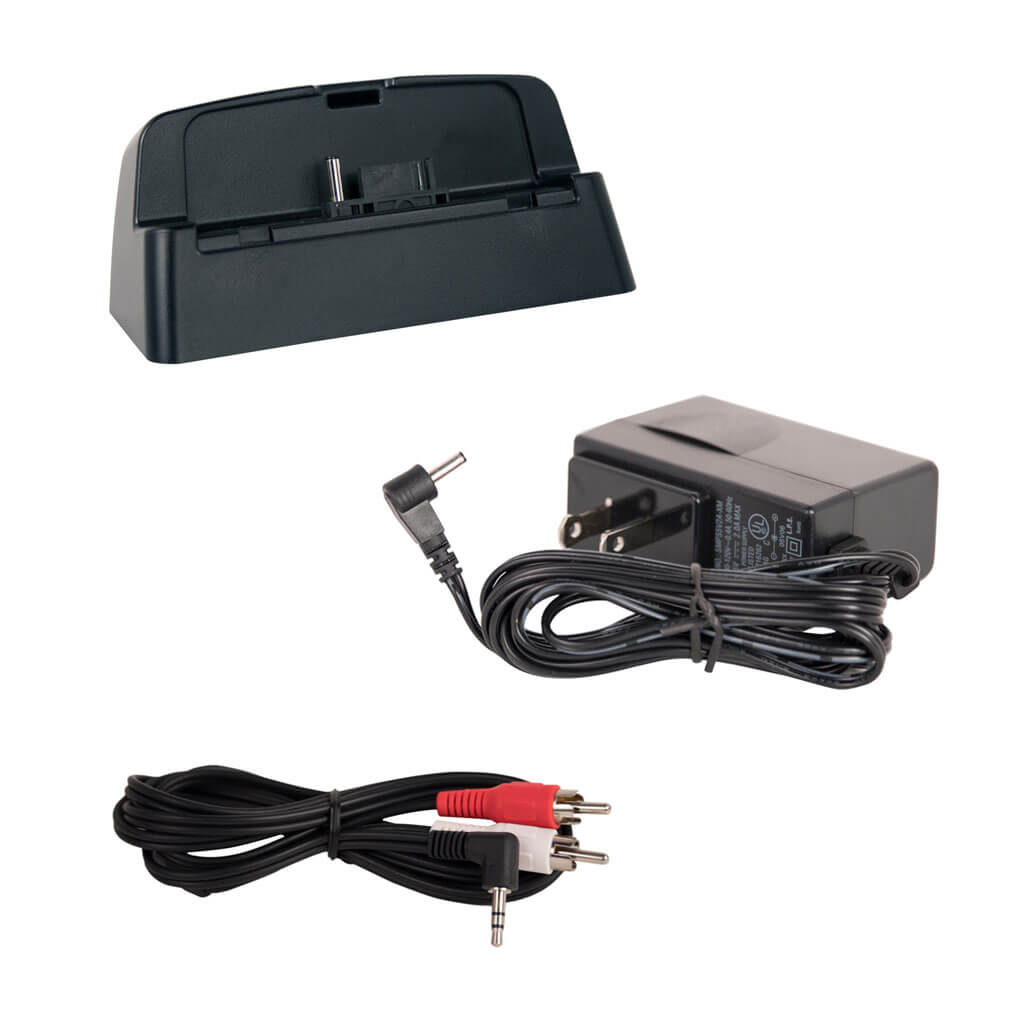

  • onyX EZR Receiver
  • Home Dock
  • Home Power Supply
  • RCA Audio Cables
  • PRO500 Commercial Grade Indoor/Outdoor Home Antenna
  • Installation Manual/Instructions

Product Documentation, Installation Guides, and Manuals
